1400Kg Industrial Paper Lamination Machine 210 * 290MM Minimum Size

BOPP Thermal film Paper Lamination Machine famous brand parts used for small paper

SADF-540 is small automatic laminating machine which newly designed to meet the needs in the laminating machine market. It is featured in the compact structure and humanized design

SADFM-540 is used for laminating thermal film and paper sheets. It is equipped with feeder automatic and automatic separating device, which are steady and highly active. The machine is also equipped SCHNEIDER,OMRON etc which is famous brand parts in order to make sure it is steadier and safer. The machine is automatic one, which is equipped with feeder automatic. Heating roller is equipped oil transfer device to guarantee the laminating temperature. In electrical system, there is PLC controller which makes the high precision of paper feeding smooth running long service life and easy maintenance. It is suitable for thermal film, especially for certificate cards book cover packing box and son.

Configurations and features of this machine

• Automatic paper feeder adopts oil-free vacuum pump to feed paper automatically.
• Automatic paper feeding system is equipped with no paper protector and paper break protector, which are controlled by photoelectric and mechanical systems.
• Man-machine interface system: color touch screen simplifies the machine operation. On the touch screen, as long as the operator inputs paper size, overlap length and working speed etc., the machine can realize completely automated operation. And on touch screen, working status of the machine can be checked at any time.
• High precision of chrome plated heating roller is equipped with built-in oil heating system, which has excellent performance to temperature control. The laminating temperature is adjustable upon applications
• Pneumatic pressuring system provides automatically stable pressure to guarantee good laminating quality. And the pressure can also be adjusted upon requests.
• Air expansion shaft releases film roll, and positions film roll more accurately, and also makes the loading and unloading of film roll more convenient.
• The combination of air expansion shaft and braking device can adjust film release tension and speed.
• Film cutter cuts film width to make it meet paper size.
• Serrated perforating wheel perforates film edge for the automatic cut of laminated paper.
• Anti-curvature device: when going though the anti-curvature device, the laminated paper shall be leveled at once and won’t curve again after cut.
• Pneumatic separating system realizes automatic paper cut.
• After cut, the laminated paper will be sent automatically to vibrating receiving table and be put into order

Technical parameters

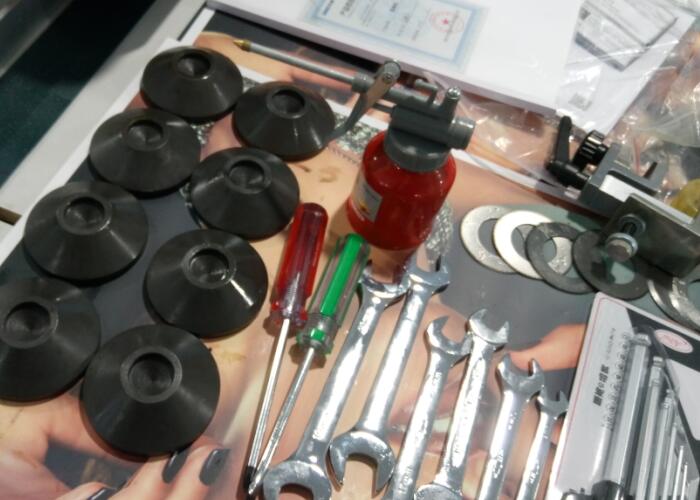

Tool Detail
